PHSA

PHSA has integrated spherical bushing with a sliding spherical surface that can support a large radial load PHSA5 PHSA6 PHSA8 PHSA10 PHSA12 PHSA14 PHSA16 PHSA18 PHSA20 PHSA22 PHSA25 PHSA28 PHSA30

Key words:

Category :

Rod End Bearings


Whatsapp

Whatsapp:


PHSA has integrated spherical bushing with a sliding spherical surface that can support a large radial load and a bidirectional axial load at the same time with superior anti-wear.

They are designed for slow swinging movement.

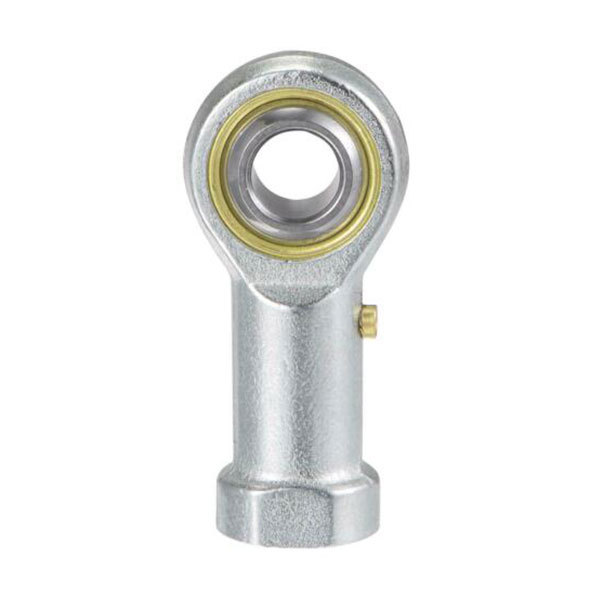

PHSA rod ends have either a female thread in the body or a male thread on the body, and they can be easily assembled onto machines.



Bearing Number Dimensions(mm) weight
d d3 d2 d5 S     B L5 C1  h1 L3 d4  L4      (g )
PHSA5 5 M5x0.8 18 12.5 10 8 4 6 27 10 9 36 13 25
PHSA6 6 M6x1 20 13 11 9 5 6.75 30 12 10 45 13 27
PHSA8 8 M8x1.25 24 16 14 12 5 9 36 16 12.5 48 13 46
PHSA10 10 M10x1.5 28 19 17 14 6.5 10.5 43 20 15 57 13 76
PHSA12 12 M12x1.75 32 22 19 16 6.5 12 50 22 17.5 66 13 115
PHSA14 14 M14x2 36 25 55 19 8 13.5 57 25 20 75 13 170
PHSA16 16 M16x2 42 27 25 21 8 15 64 28 22 84 13 230
PHSA18 18 M18x1.5 46 31 27 23 10 16.5 71 32 25 94 13 320
PHSA20 20 M20x1.5 50 34 30 25 10 18 77 33 27.5 102 13 420
PHSA22 22 M22x1.5 54 37 32 28 12 20 84 37 30 111 13 540
PHSA25 25 M24x2 60 42 30 31 12 22 94 42 33.5 124 13 750
PHSA28 28 M27x2 66 46 41 35 14 24 103 41 37 136 13 820
PHSA30 30 M30x2 70 50 41 37 15 25 110 51 40 145 13 1300
