LME.UU
This type is metric dimension series generally used in Europe.

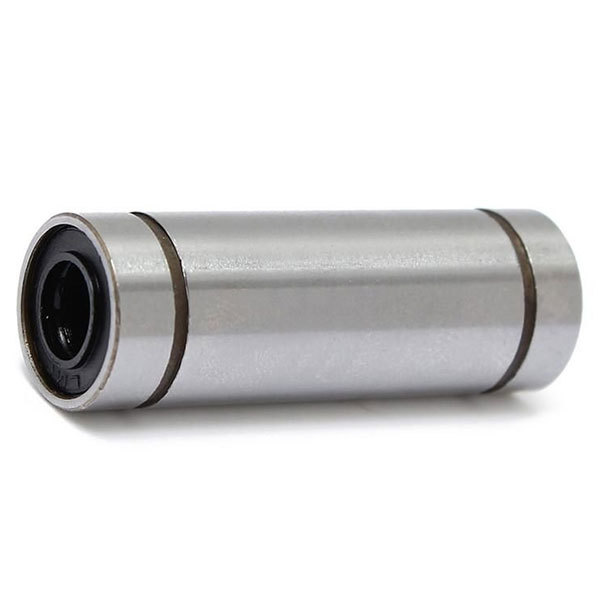

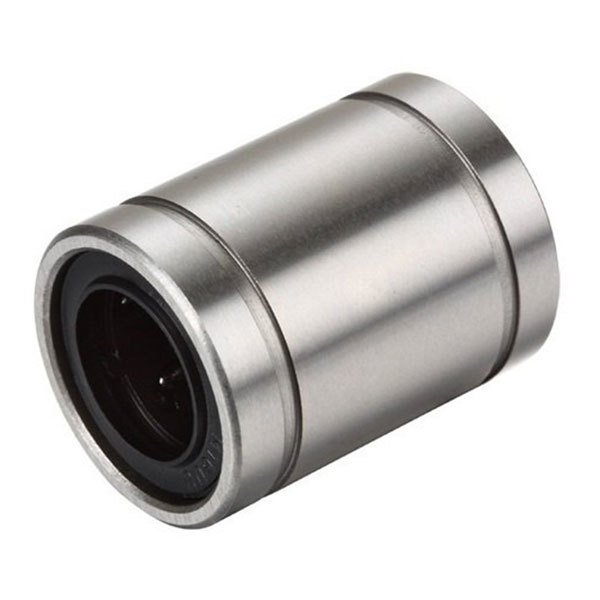

LM/LME linear bushing has a steel outer ring with grooves for a circlip and a polyamide ball retainer with 3 to 6 ball circuits depending on size.
On request linear ball bushing are also available in stainless steel. All linear bearings with the designation UU have seals from both sides.
| Bearing Model | d(mm) | D(mm | L(mm) |
| LME8UU | 8 | 16 | 25 |
| LME12UU | 12 | 22 | 32 |
| LME16UU | 16 | 26 | 36 |
| LME20UU | 20 | 32 | 45 |
| LME25UU | 25 | 40 | 58 |
| LME30UU | 30 | 47 | 68 |
| LME40UU | 40 | 62 | 80 |
| LME50UU | 50 | 80 | 100 |
| LME60UU | 60 | 90 | 125 |
| LME80UU | 80 | 120 | 168 |
