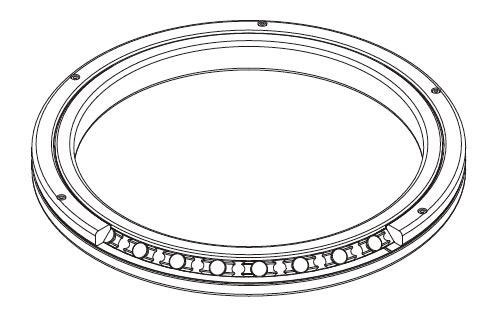

Model RB -Separable Outer Ring Type for Inner Ring Rotation

Cross-Roller Ring basic type, with a separable outer ring, and an inner ring integrated with the main body.It is used in locations where the rotational accuracy of the inner ring is required. It is used, for example, in the swivel portions of index tables of machine tools.

Bearing Number	Dimensions
Bearing Number	d mm	D mm	B mm
RB2008	20	36	8
RB2508	25	41	8
RB3010	30	55	10
RB3510	35	60	10
RB4010	40	65	10
RB4510	45	70	10
RB5013	50	80	13
RB6013	60	90	13
RB7013	70	100	13
RB8016	80	120	16
RB9016	90	130	16
RB10016	100	140	16
RB10020	100	150	20
RB11012	110	135	12
RB11015	110	145	15
RB11020	110	160	20
RB12016	120	150	16
RB12025	120	180	25
RB13015	130	160	15
RB13025	130	190	25
RB14016	140	175	16
RB14025	140	200	25
RB15013	150	180	13
RB15025	150	210	25
RB15030	150	230	30
RB16025	160	220	25
RB17020	170	220	20
RB18025	180	240	25
RB19025	190	240	25
RB20025	200	260	25
RB20030	200	280	30
RB20035	200	295	35
RB22025	220	280	25
RB24025	240	300	25
RB25025	250	310	25
RB25030	250	330	30
RB25040	250	355	40
RB30025	300	360	25
RB30035	300	395	35
RB30040	300	405	40
RB35020	350	400	20
RB40035	400	480	35
RB40040	400	510	40
RB45025	450	500	25
RB50025	500	550	25
RB50040	500	600	40
RB50050	500	625	50
RB60040	600	700	40
RB70045	700	815	45
RB80070	800	950	70
RB90070	900	1050	70
RB1000110	1000	1250	110
RB1250110	1250	1500	110
